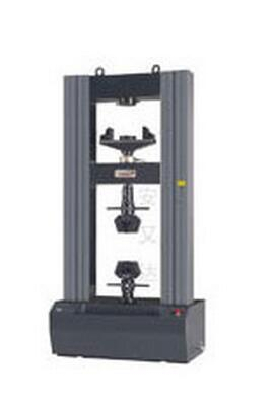

Main function: This machine is suitable for all kinds of metal, nonmetal, physical property test and analysis of composite materials and products, and the maximum strength of the material can be obtained according to GB.ISO.ASTM.JIS.DIN and the yield strength.

Tensile strength, non - proportional elongation, compressive strength, flexural strength, modulus of elasticity, etc..

Main features:

1: using high speed DSP platform, its high integration, powerful control, data processing capability, high reliability, is the use of other processors can not match the test machine.

2: the digital, neuron adaptive PID algorithm based on closed loop three (force, deformation and displacement) control system, the digital control loop to achieve three force, deformation and displacement, can automatically switch the control loop, and realize the smooth transition without impact in the way of switching between.

3: the test force, deformation, displacement and other rate control and maintain.

4: closed loop control parameters on-line identification.

5: high precision 24Bit data acquisition system, high resolution, can be extended to 8 road AD acquisition.

6:USB1.1 communication, the communication rate of 12Mb/s, the use of full speed mode, mass transfer mode.

7: the system board uses 4 layers of PCB unique anti-interference wiring method, anti-interference ability is strong.

8: in addition to the power supply interface, other interfaces are all using standard USB type interface, plug and play interface this interface can realize hot plug, that is, with plug and play function. Interface characteristics can be set up by software. The interface neat layout is reasonable, convenient plug.

9: the entire control system has a very high cost, high reliability.

10: the use of microcomputer control of the whole test process, real-time dynamic display of the load value, displacement, deformation, test speed and test curve.

11: the use of microcomputer for data processing and analysis, test results can be automatically saved, after the end of the test can be re transferred out of the test curve, through the curve to reproduce the test process, or the curve comparison, curve amplification.

12: the whole Chinese Windows platform test software, with a strong data and graphics processing function, can immediately print out the complete test report and test curve.

13: with perfect limit protection, overload protection, emergency stop and other safety protection functions.

Meet the standard:

"GB/T16491-1996 electronic universal testing machine"
